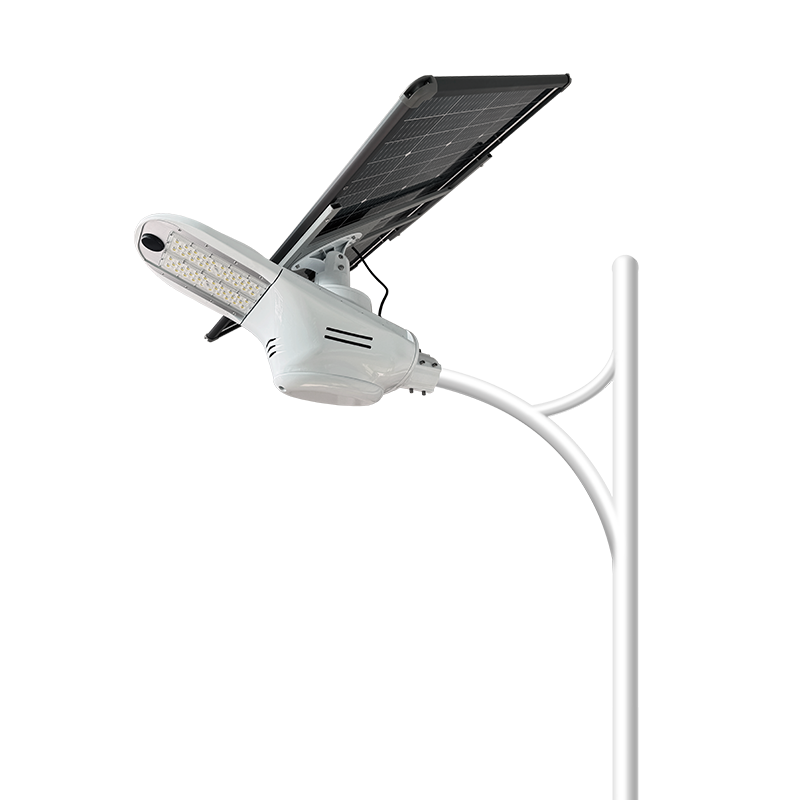

Solar Street Light With Adjustable Solar Panel
Solar Swan light especially created for horizontal installation on single arm or double arm street poles.
- ’SWAN’ shape light body, ’All In One’ Modern and elegent appearance
- Innovative adjustable solar panel design (5 angle)
- All die-casting aluminum light body zinc plated anti-rust corrosion.
- Perfect modular structure design, no wiring, easily replace the battery and other parts
- Support Photovoltaic Power Generation and Utility Power Grid
Cate for Highway roads, City urban, Public lighting area, Square & Landscape& School, Tourist center.
Product Configurations Support Project-based Customization
| Model | Led Power (Bridgelux) | Lumen | Double-sided Mono Solar Panel | LiFePO4 Lithium Battery | Mounting Height | Mounting Distance |
| BS-SW-40 | 40W-180W | 7200-37800lm | 80W 18V-400W 36V | 345.6WH / 27AH 12.8V - 1382.4WH / 54AH 25.6V | 7-12m | 19-50m |
| BS-SW-60 | ||||||
| BS-SW-80 | ||||||
| BS-SW-100 | ||||||
| BS-SW-120 | ||||||
| BS-SW-150 | ||||||
|
BS-SW-180 |
Packaging Details
| Model | G.W. | Carton Size | Container | |
| BS-SW-50 | 28.5kg/set |
lamp
760*420*340mm |
solar panel: 825x725x105mm(2pcs/ctn) | 184sets/20GP 415sets/40GP 492set/40HQ |
| BS-SW-60 | 32kg/set | solar panel: 950x725x105mm(2pcs/ctn) | 178sets/20GP 400sets/40GP 474sets/40HQ | |
| BS-SW-80 | 35kg/set | solar panel: 1265x725x105mm(2pcs/ctn) | 160sets/20GP 360sets/40GP 427sets/40HQ | |
| BS-SW-100 | 38kg/set | solar panel: 1555x725x105mm(2pcs/ctn) | 150sets/20GP 338sets/40GP 400sets/40HQ | |
| BS-SW-120 | 43kg/set | solar panel: 1555x855x105mm(2pcs/ctn) | 140sets/20GP 318sets/40GP 376sets/40HQ | |
| BS-SW-150 | 45kg/set |
lamp
865*310*325mm |
solar panel: 1265x725x105mm (2pcs/ctn) |
127sets/20GP 285sets/40GP 337sets/40HQ |
| BS-SW-180 | 48kg/set | solar panel: 1555x855x105mm (2pcs/ctn) | 105sets/20GP 235sets/40GP 279sets/40HQ | |

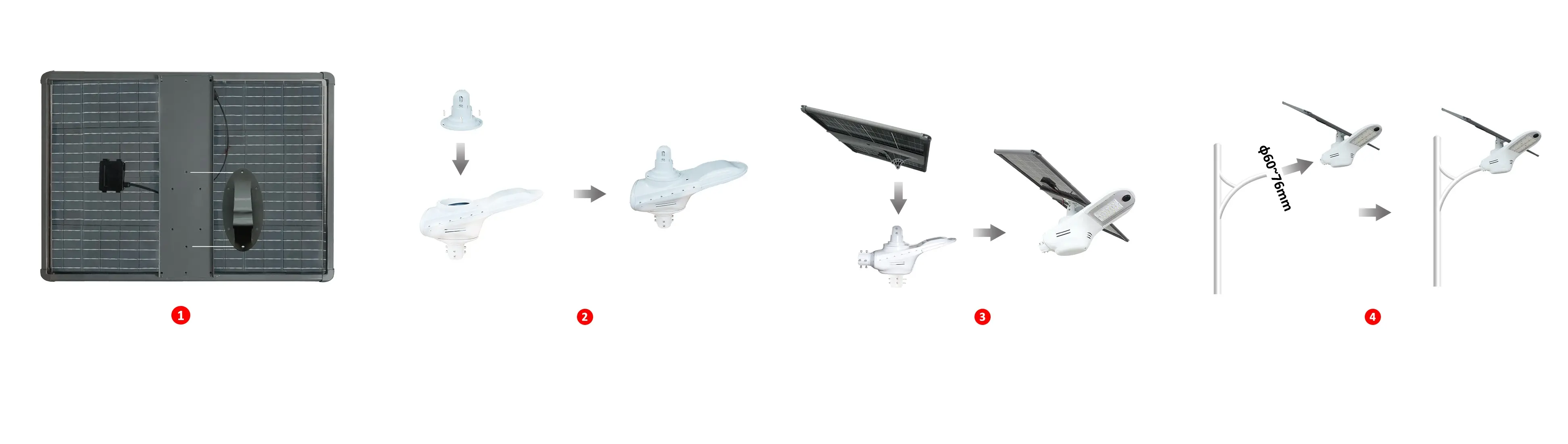

3 Mins Installation
As far as you know, all in one solar street light is easy to do the installation and maintenance. Because it doesn’t connect the grid power and no need for digging, wiring etc, use the shortest time to finish installation!

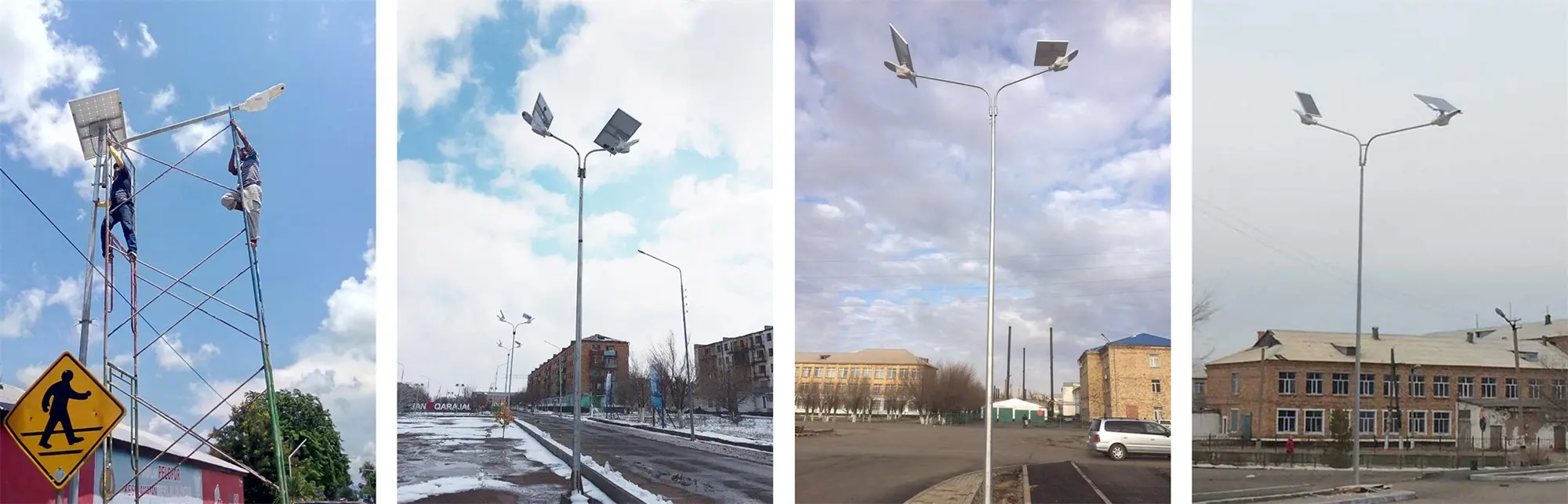

Project Case
