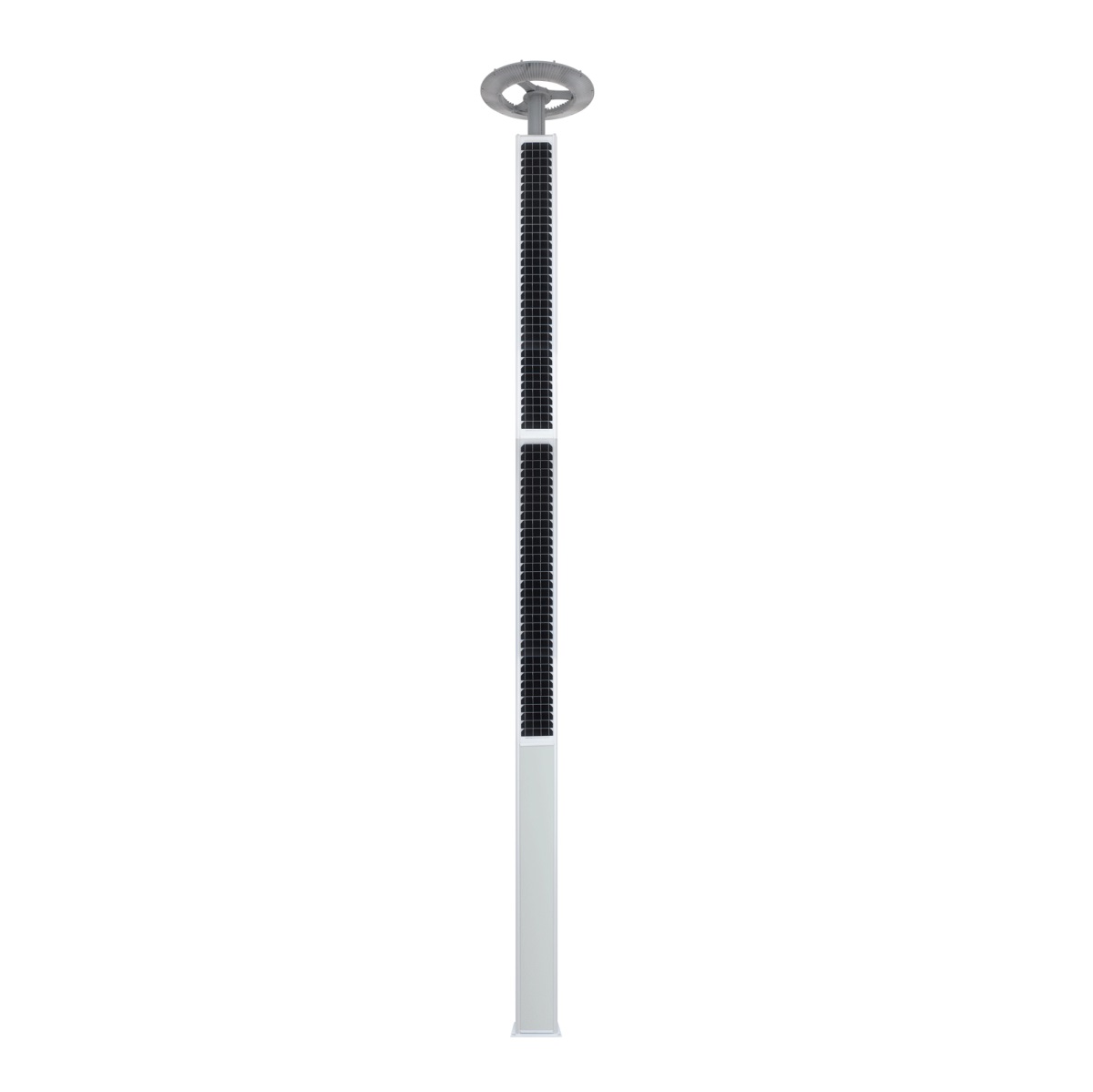

All In One Solar Column Light
The Whirlwind series is a breakthrough innovation for solar lighting application in cities. Its artistic design beautifies city centers like shopping malls, commercial blocks as well as campus, parks and residential areas.
- 4 sides mono -crystalline sola panel All in One Solar lighting Column, 20w 40w 60w available
- 3 types luminaire are available, you can also use your own luminaire
- 15-year life of lithium iron phosphate batteries, more durable and long-lasting
- Intelligent mode control, intelligent adjustment of output power in cloudy and rainy days, reasonable planning of discharge
- Aesthetic and urban design, more suitable for high latitudes area
Innovative Solar Pole Solution for city. This results in solar products that are reliable, durable, built to last, and the perfect building block for smart-cities.
Product Configurations Support Project-based Customization
| Model No | Power (Bridgelux) | Lumen | LiFePO4 Lithium Battery | Mono Solar Panel | Standard CCT | Pole | Mircrowave sensor |
| W-20 | 20W | 3000LM | 268.8WH 21AH 12.8V | 180W 18V | 5000K ( 3000k-6000K are optional) | 3.3M Height 150x150mm With Special Locking Mechanism | Default No ( use C type luminaire can be with motion sensor function) |
| W-40 | 40W | 6000LM | 537.6WH 21AH 25.6V | 360W 36V | 5.5M Height 150x150mm With Special Locking Mechanism | Default No ( use C type luminaire can be with motion sensor function) | |
| W-60 | 60W | 8000LM | 819.2WH 32AH 25.6V | 540W 36V | 6.5M Height 150x150mm With Special Locking Mechanism | Default No ( use C type luminaire can be with motion sensor function) |
Packaging Details
| Model No | Power (Bridgelux) | Lumen | LiFePO4 Lithium Battery | Mono Solar Panel | Standard CCT | Pole | Mircrowave sensor |
| W-20 | 20W | 3000LM | 268.8WH 21AH 12.8V | 180W 18V | 5000K ( 3000k-6000K are optional) | 3.3M Height 150x150mm With Special Locking Mechanism | Default No ( use C type luminaire can be with motion sensor function) |
| W-40 | 40W | 6000LM | 537.6WH 21AH 25.6V | 360W 36V | 5.5M Height 150x150mm With Special Locking Mechanism | Default No ( use C type luminaire can be with motion sensor function) | |
| W-60 | 60W | 8000LM | 819.2WH 32AH 25.6V | 540W 36V | 6.5M Height 150x150mm With Special Locking Mechanism | Default No ( use C type luminaire can be with motion sensor function) |

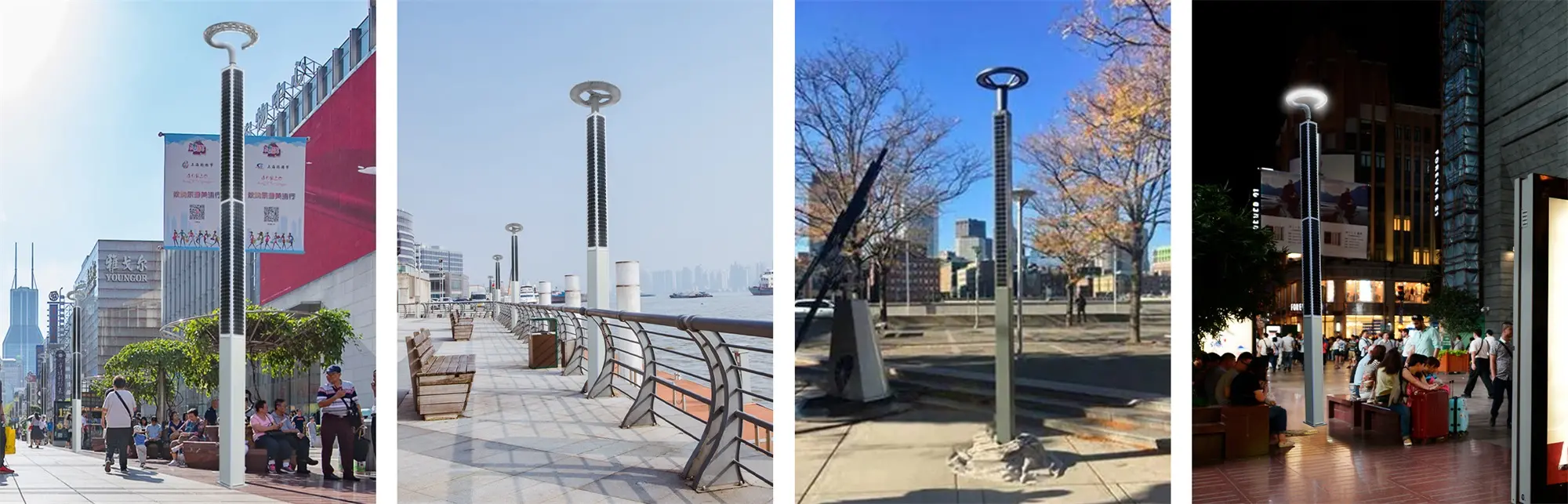

Project Case
