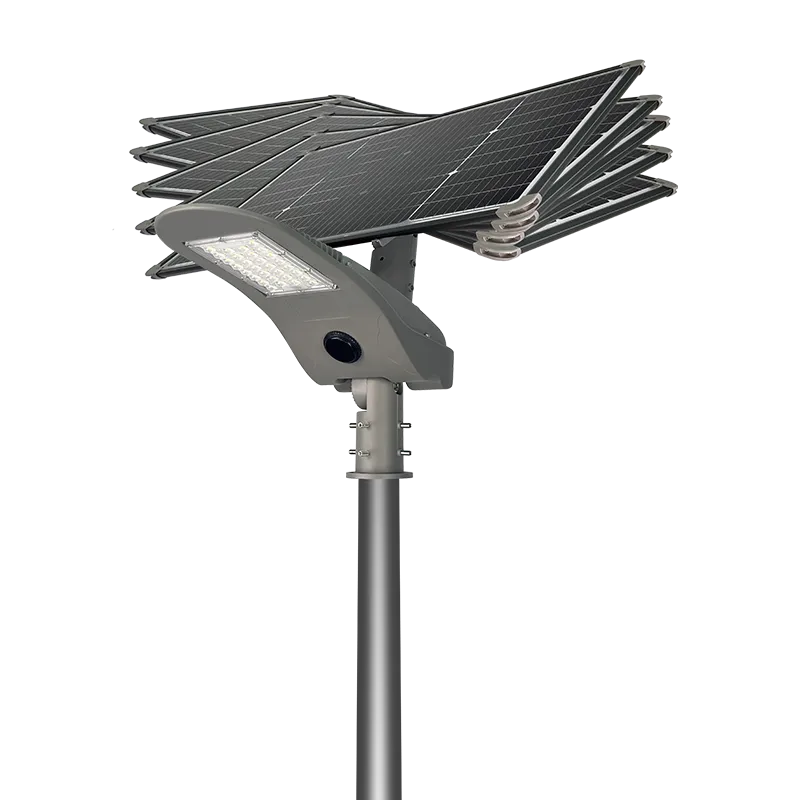

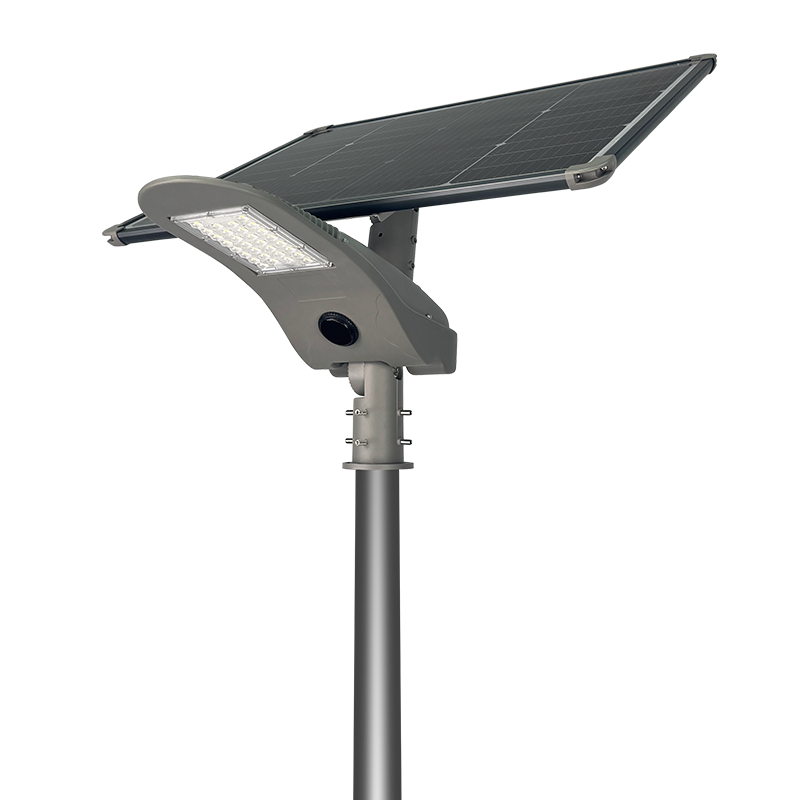

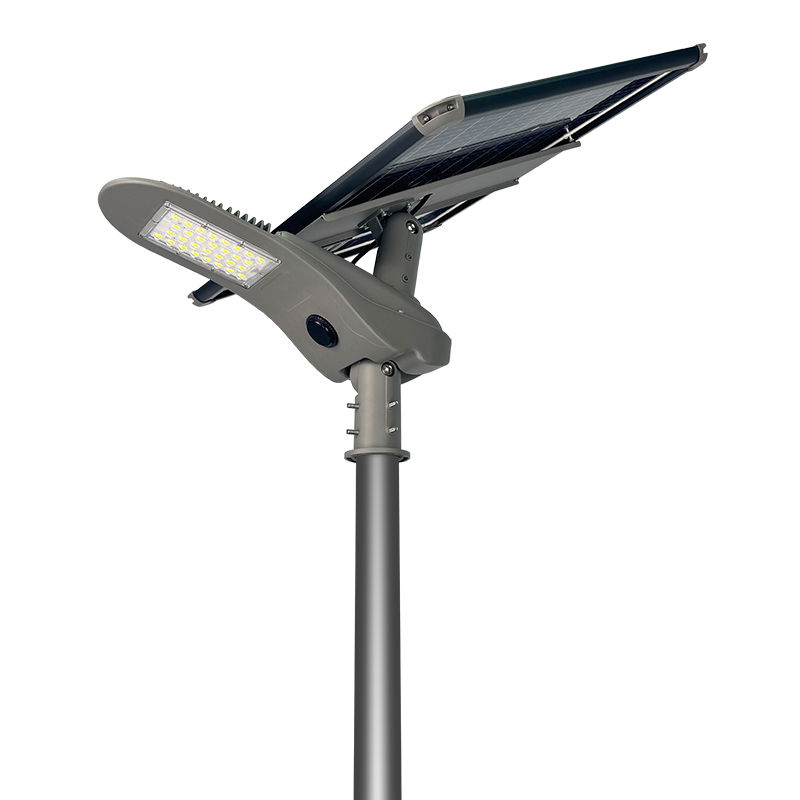

All In One Solar Garden Street Light - FP Series
2018 Newest design FP Series All-in-One Solar LED Lighting products with Motion Sensor for street road garden lighting.
- High tensile die-casting aluminum light body, anti-corrosion, Excellent heat dissipation.

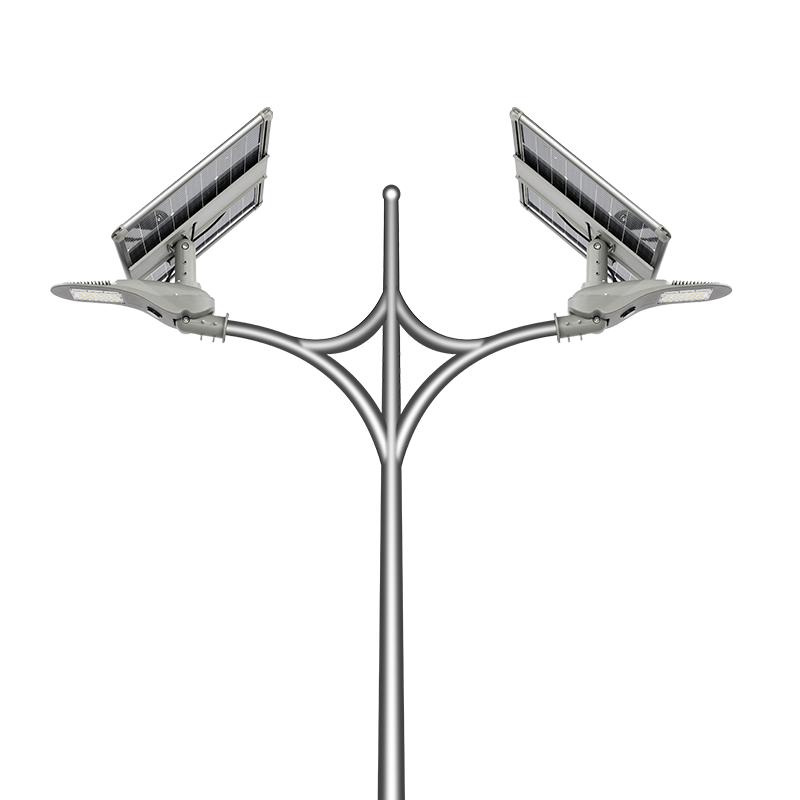

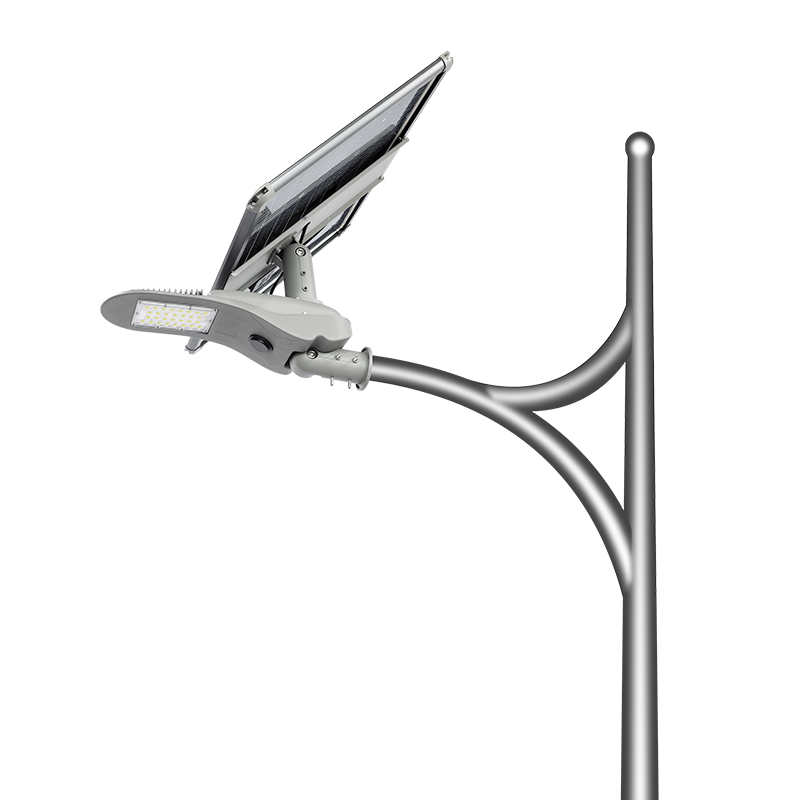

- Installation type: post top mounting & Side entry mounting.
- LED Luminous efficiency reach up to 200lm/w. 2000lm-8000lm available.
- Light distribution: TYPEII for road lighting, TYPE III for area lighting.
- Mounting Height for Best Visibility: 13 to 26 ft (4 to 8m).

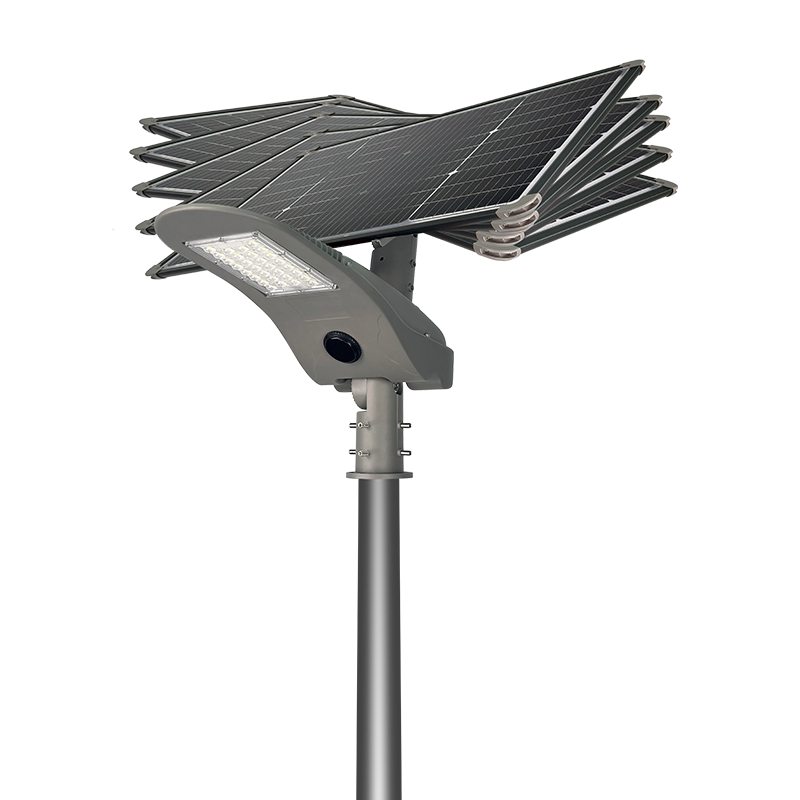

Solar panel can be adjustable manually in vertical and horizontal direction, ensure maximum efficiency of solar energy.
Product Configurations Support Project-based Customization
| Model | Parameter | ||||
| Led Power (Bridgelux) | Double-sided Mono Solar Panel | LiFePO4 Lithium Battery | Mounting Height | Mounting Distance | |
| FP-01A | 2000lm | 40W 18V | 9AH/12.8V | 4-5m | 10-13m |
| FP-02A | 4000lm | 50W 18V | 12AH/12.8V | 4-6m | 16-19m |
| FP-04A | 6000lm | 60W 18V | 18AH/12.8V | 6-7m | 23-27m |
| FP-06A | 8000lm | 80W 18V | 24AH/12.8V | 7-8m | 31-35m |
Packaging Details
| Model | Packaging Details | ||
|---|---|---|---|
| GW/set | Carton Size：Lamp(1pcs/cnt)/Panel (2pcs/cnt) | Container | |
| FP-01A | 18.5kg |
Lamp: 65 x 23 x 25 cm Panel: 49x73x9 cm |
20GP: 415sets 40GP: 900 sets 40HQ: 1133sets |
| FP-02A | 22kg |
Lamp: 65 x 23 x 25cm Panel: 59 x73 x 9 cm |
20GP: 385sets 40GP: 830 sets 40HQ: 1040sets |
| FP-04A | 24.3kg |
Lamp: 65 x 23 x 25 cm Panel: 74 x 68 x 9 cm |
20GP: 385sets 40GP: 830 sets 40HQ: 1040sets |
| FP-06A | 26.4kg |
Lamp: 65 x 23 x 25 cm Panel: 78 x 75 x10 cm |
20GP: 357sets 40GP: 770 sets 40HQ: 1133sets |

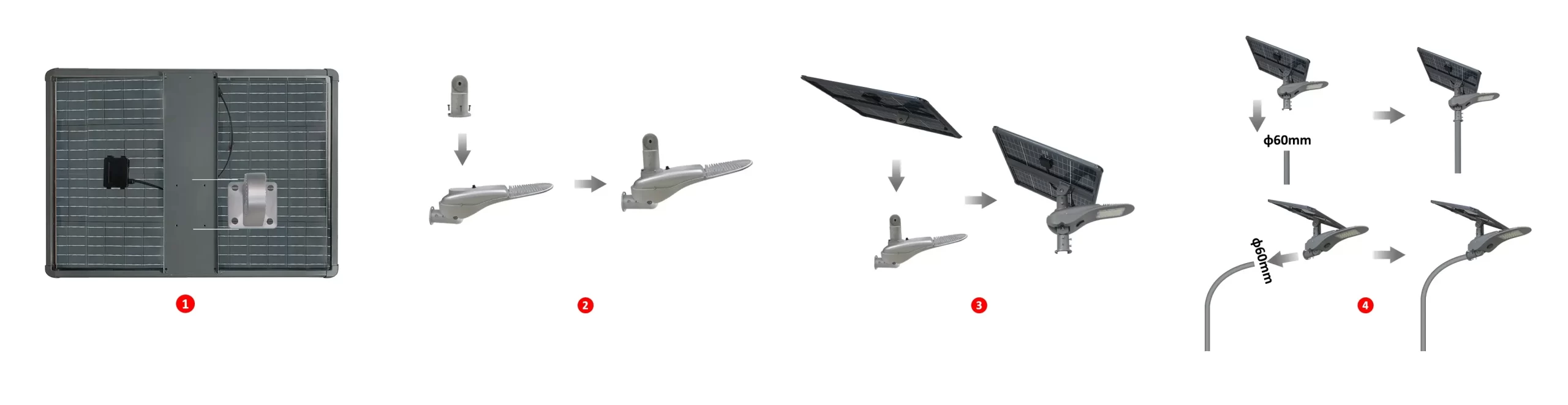

All In One Solar Street Light Installation
As far as you know, all in one solar street light is easy to do the installation and maintenance. Because it doesn’t connect the grid power and no need for digging, wiring etc, use the shortest time to finish installation!

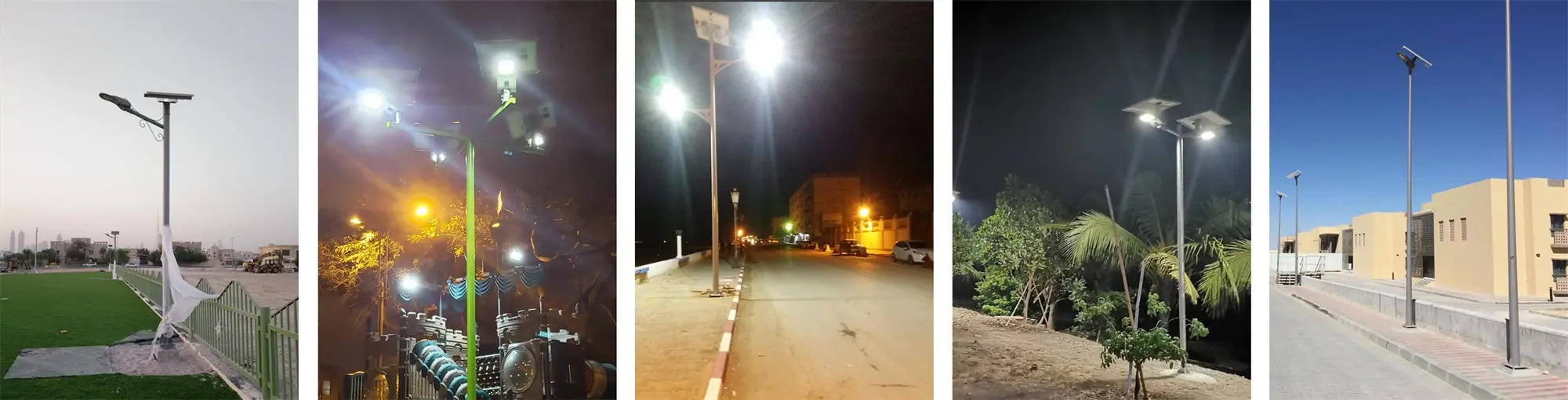

Project Case
