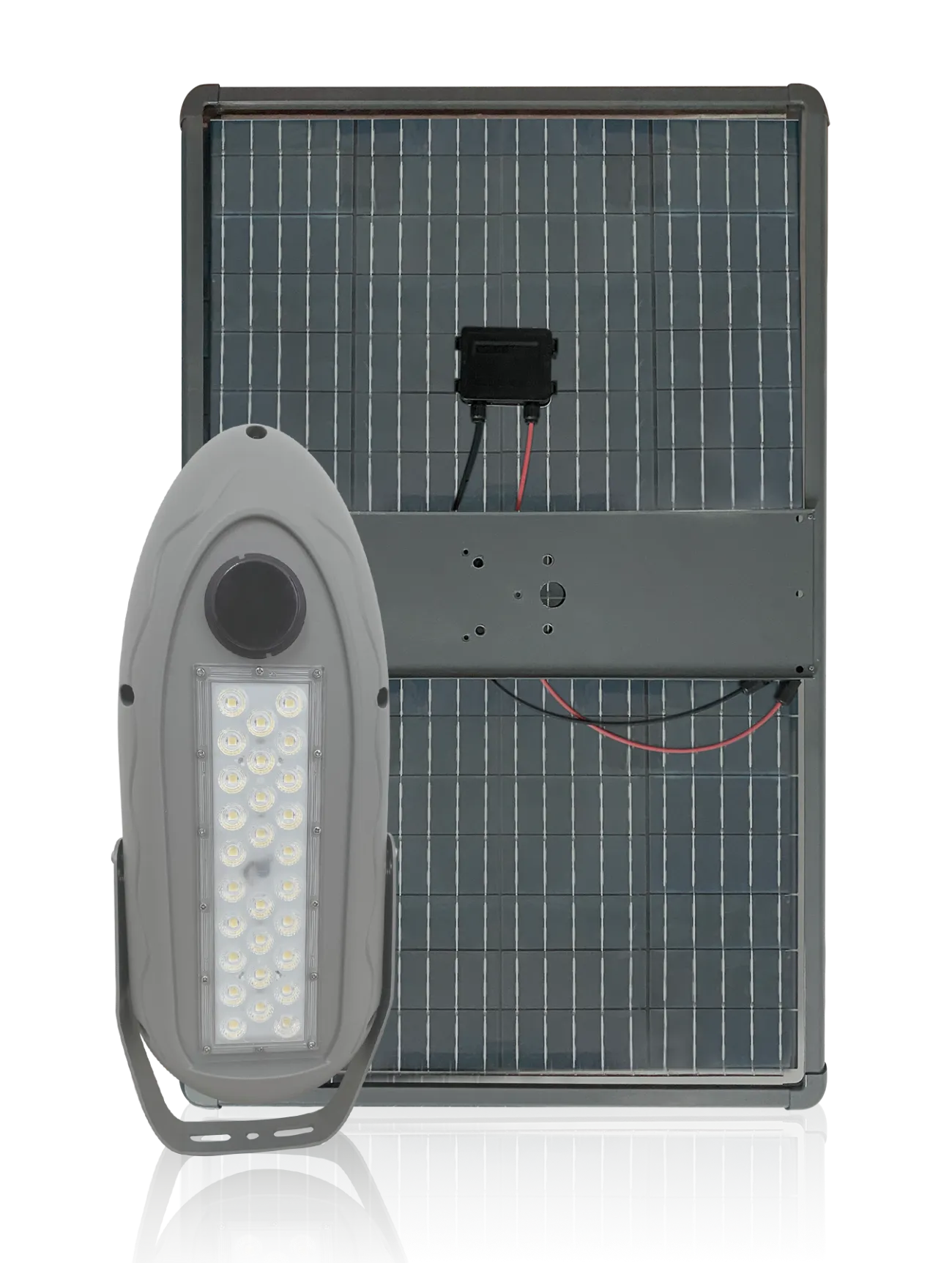

banner3
banner4
banner5

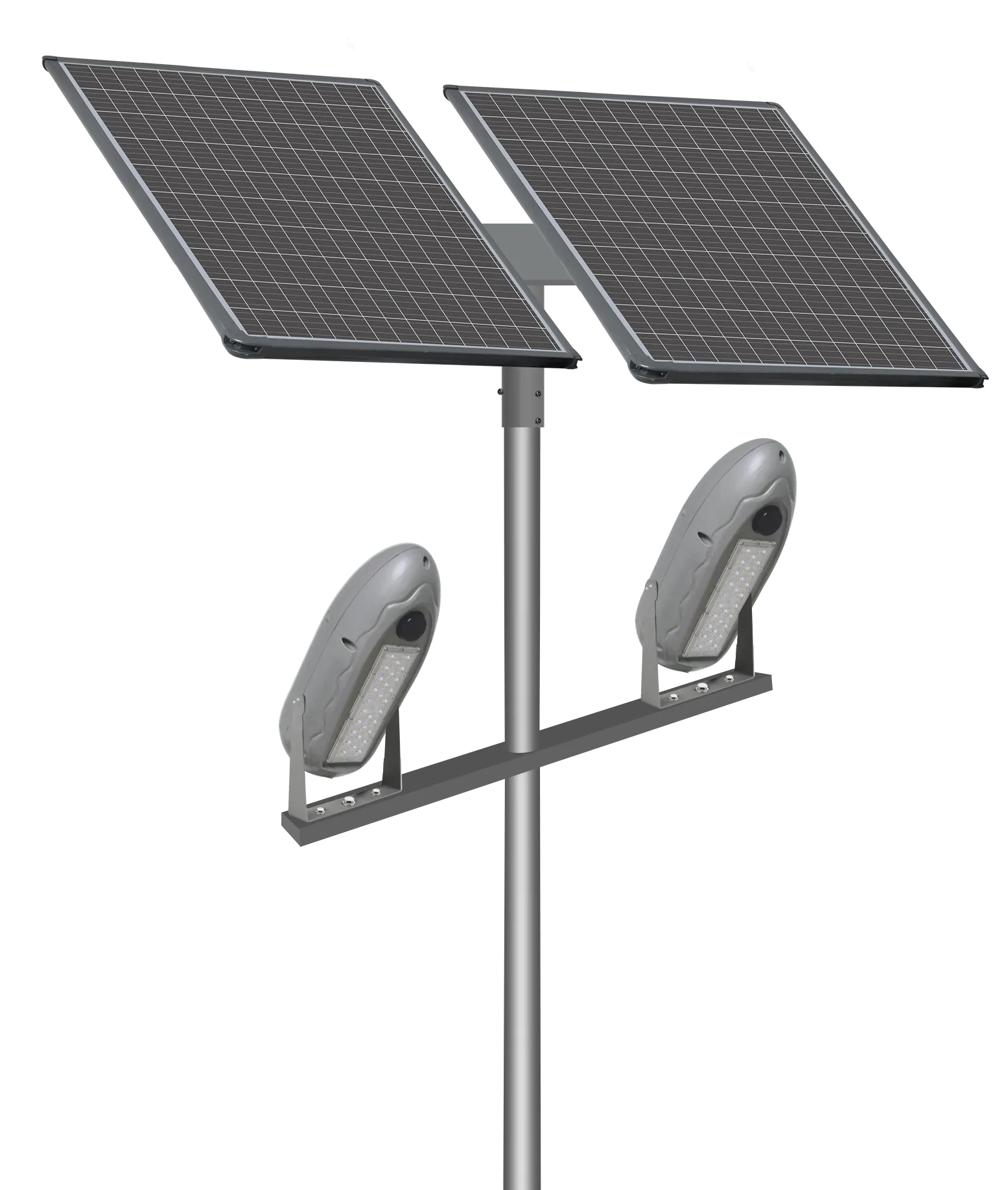

All-In-One/Integrated High Power Solar Flood Light

All in one Solar Power Flood Light 15w to 100w. Integrates LED lighting source, lithium battery and controller with LED fixture as one unit, and the solar panel is separated as another part. Fly Fish light Plug-In Series Solar Flood Light is an good option for 5m~10m height pole.



  • Side mounting for single arm or double arm street poles
  • Stand-alone lighting system, automatically, off-grid and can be equiped with wirelss control system
  • All die-casting aluminum light body zinc plated anti-rust corrosion, no worried for coastsl lighting application.
  • Perfect modular structure design, no cabling and easily replace the battery and other parts
  • Can be installed anywhere, especially areas where grid tied electricity is not available.



FF series is Bluesmart’s newest solar flood light that aims to provide superb lighting distribution with the special-designed lens. It works not only as a flood light for sports fields, residential square area lighting but also as a perfect luminaire for billboard advertising.

Product Configurations Support Project-based Customization

Model NO. Maximum
Power
Luminous
Flux(lm)
LiFePO4 Battery
Capacity
Mono Solar Panel
Capacity
Pole
Height
Mounting
Distance
FF-15 15W 2000lm 15AH 12.8V 192WH 18V 50W 4-6M 10-13m
FF-20 20W 2,800lm 18AH 12.8V 230.4WH 18V 60W 5-6M 13-16m
FF-30 30W 4200lm 21AH 12.8V 268.8WH 18V 80W 5-8M 16-19m
FF-40 40W 5600lm 27AH 12.8V 345.6WH 18V 80W 6-8M 19-23m
FF-50 50W 7000lm 33AH 12.8V 422.4WH 18V 100W 7-9M 23-27m
FF-60 60W 8400lm 21AH 25.6V 537.6WH 36V 120W 8-9M 27-31m
FF-80 80w 11200lm 24AH 25.6V 614.4WH 36V 160W 8-10M 30-35m
FF-100 100w 14000lm 27AH 25.6V 691.2WH 36V 200W 9-12M 35-40m

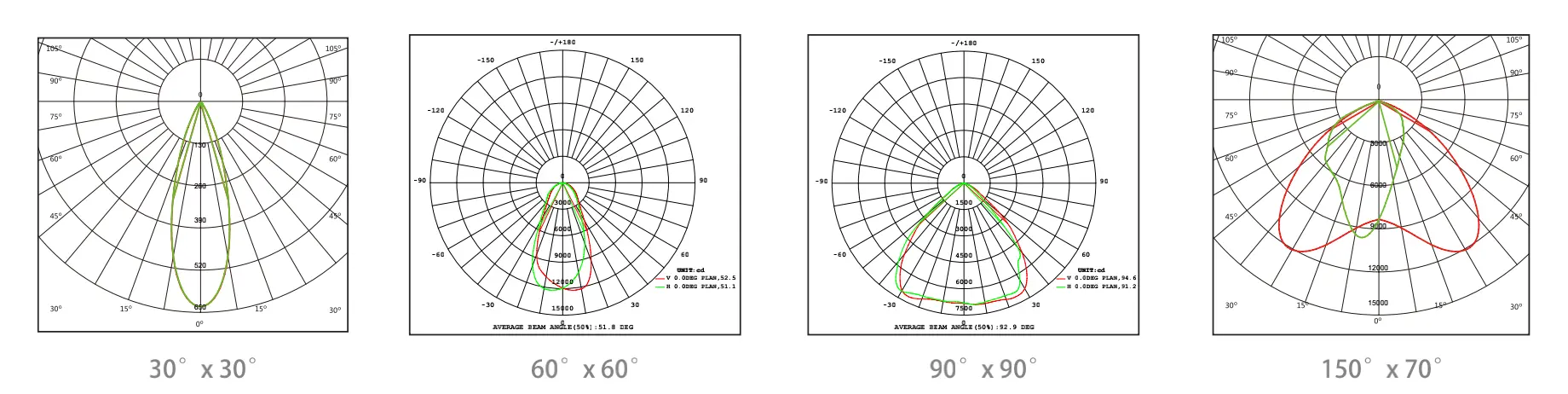

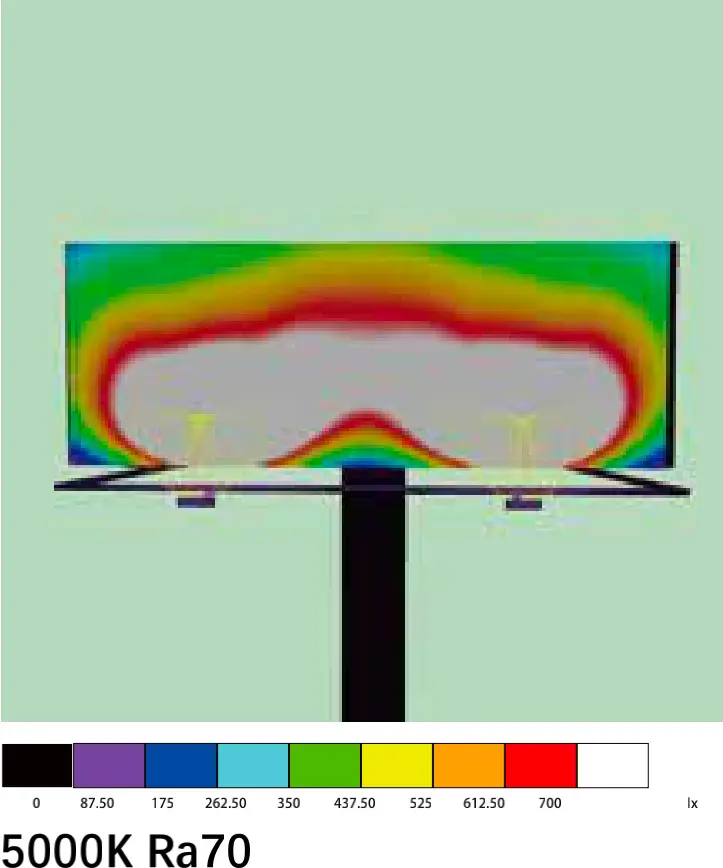

Photometric Diagrams

Photometric Diagrams

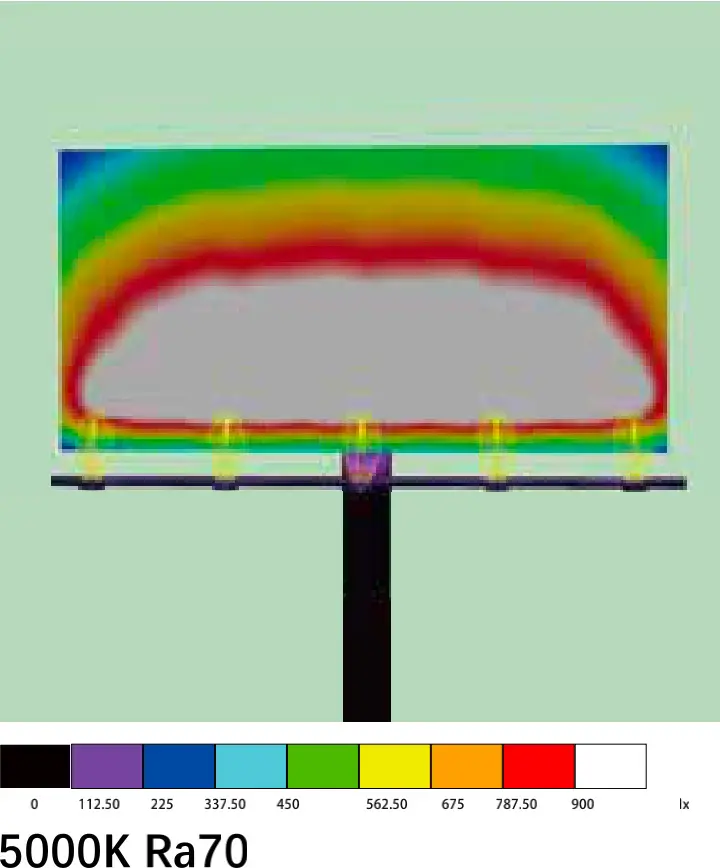

 Billboard Lighting

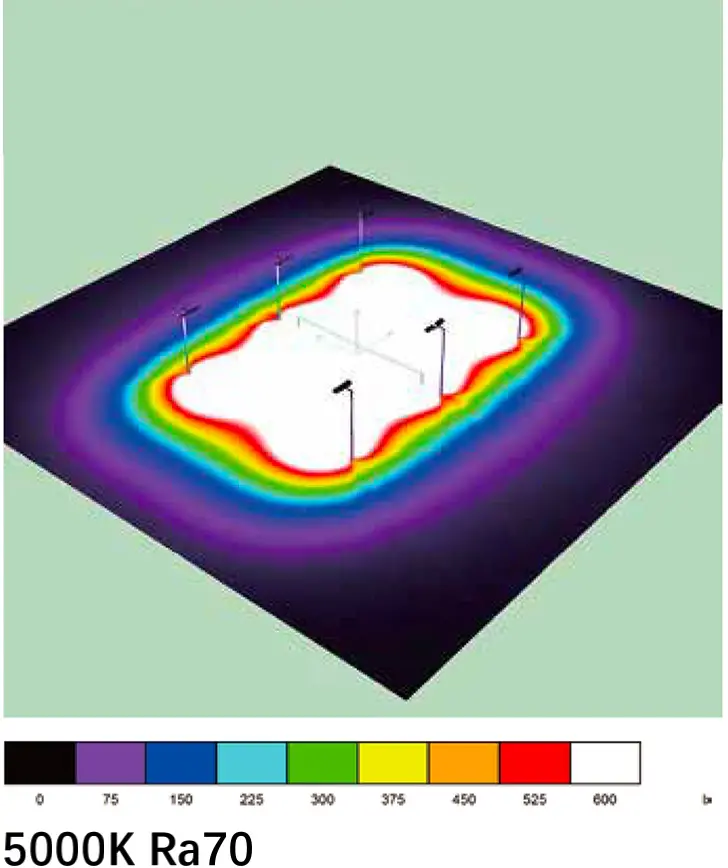

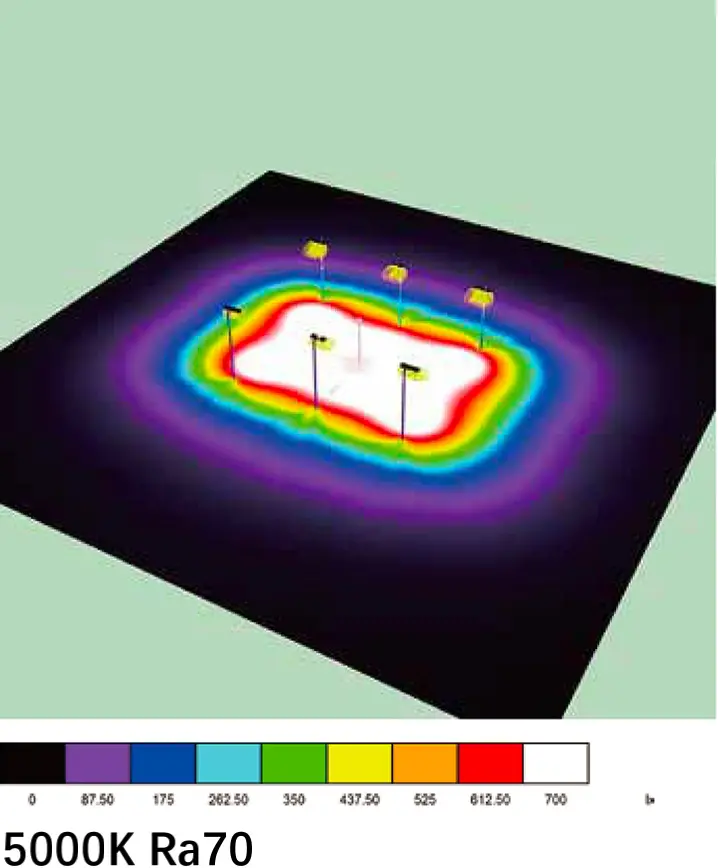

 Badminton Court  Tennis Court

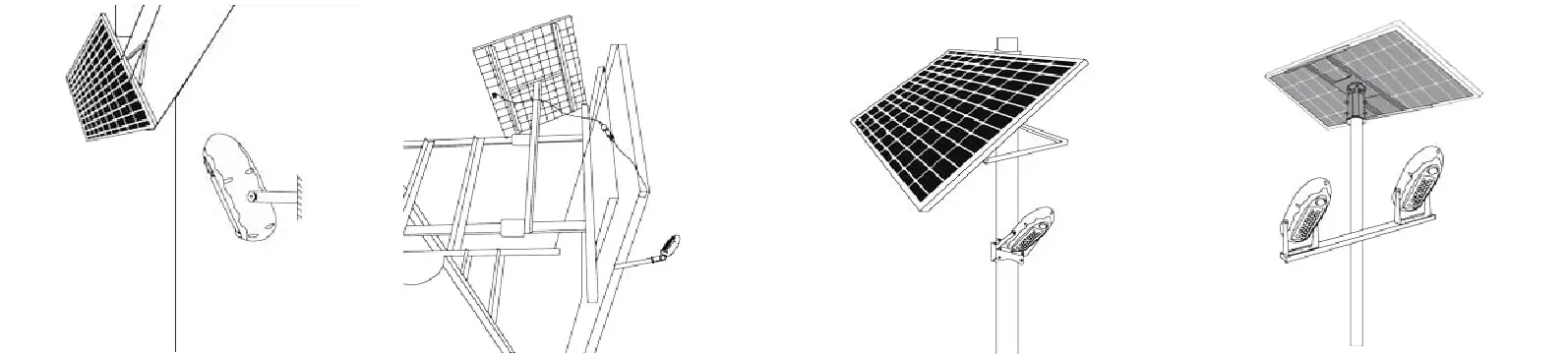

Different Installation Methods

Different Installation Methods

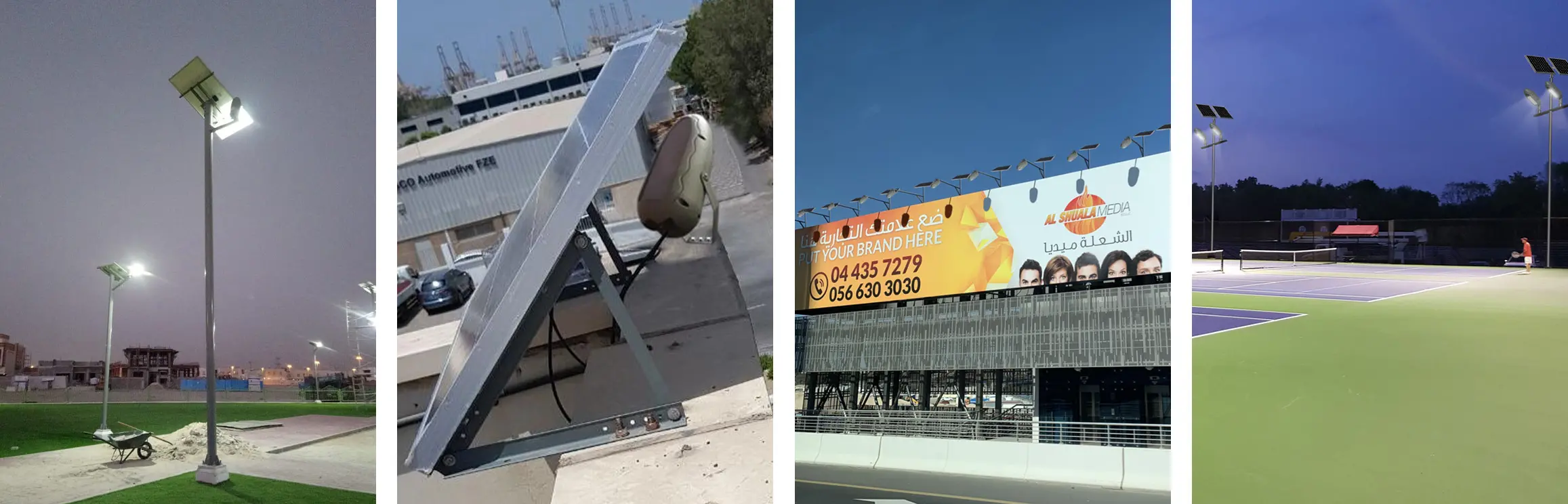

FF Solar Flood Light Project Case

FF Solar Flood Light Project Case
