FP Series

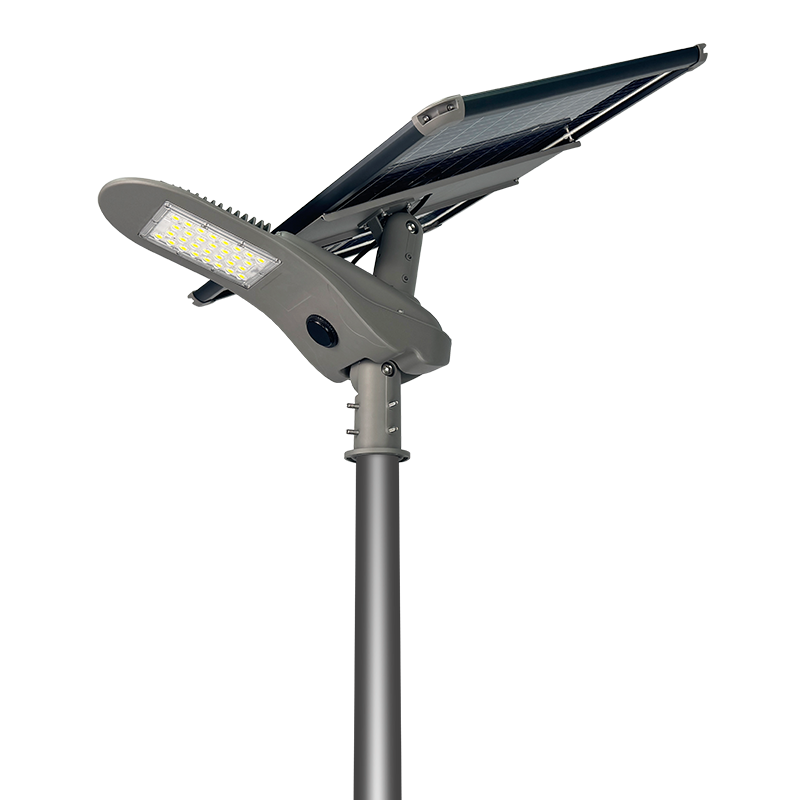

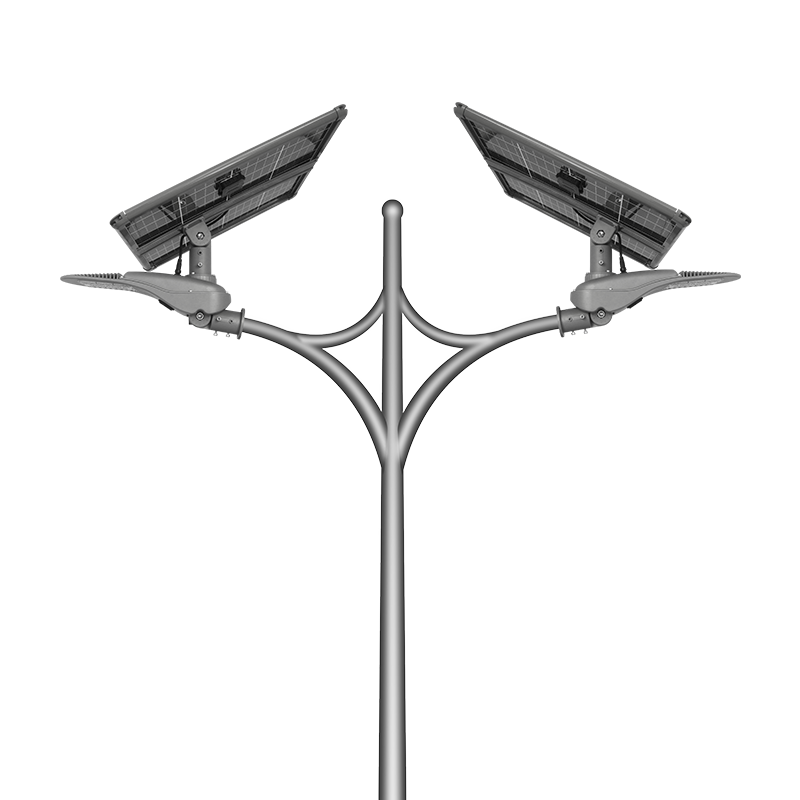

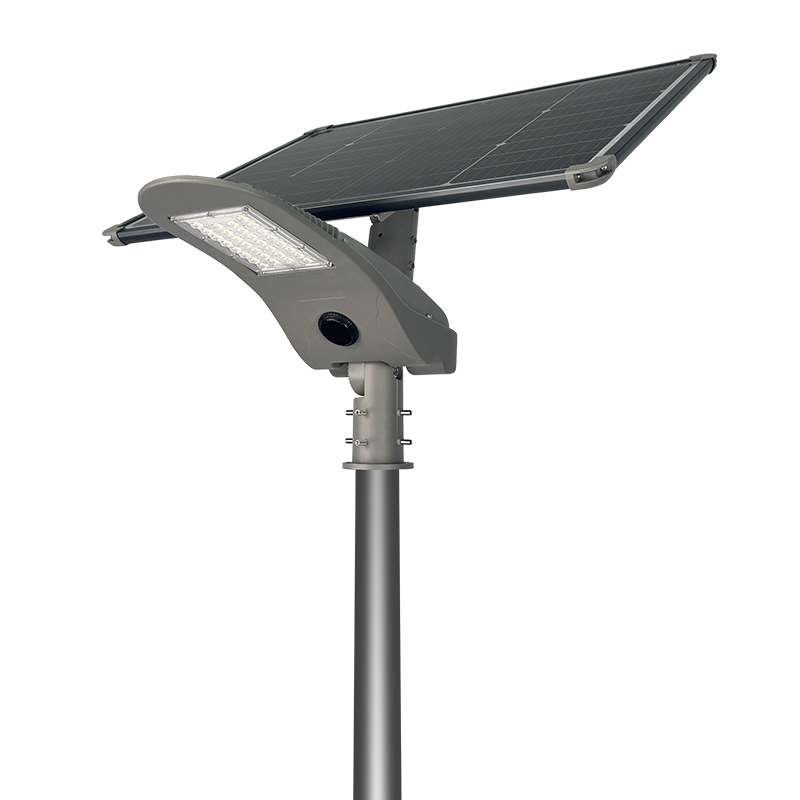

All In One Solar Garden Street Light

2018 Newest design FP Series All-in-One Solar LED Lighting products with Motion Sensor for street road garden lighting.

High tensile die-casting aluminum light body, anti-corrosion, Excellent heat dissipation.
Installation type: post top mounting & Side entry mounting.
LED Luminous efficiency reach up to 190lm/w. 2000lm-8000lm available.
Light distribution: TYPEII for road lighting, TYPE III for area lighting.
Mounting Height for Best Visibility: 13 to 26 ft (4 to 8m).

Solar panel can be adjustable manually in vertical and horizontal direction, ensure maximum efficiency of solar energy.

REQUEST FREE QUOTE

Datasheet

Packaging Details

Model	Parameters
Model	Led light (Bridgelux)	Mono Solar panel	LiFePO4 Battery	Mounting height	Mounting Distance
FP-01A	2000LM	40W/18V	9AH/12.8V	4-5M	10-13M
FP-02A	3000LM	50W/18V	12AH/12.8V	4-6M	16-19M
FP-04A	5000LM	60W /18V	18AH /12.8V	6-7M	23-27M
FP-06A	8000LM	80W/18V	24AH / 12.8V	7-8M	31-35M

Model	Packaging Details
Model	GW/set	Carton Size：Lamp(1pcs/cnt)/Panel (2pcs/cnt)	Container
FP-01A	18.5kg	Lamp: 65 x 23 x 25 cm Panel: 49x73x9 cm	20GP: 415sets 40GP: 900 sets 40HQ: 1133sets
FP-02A	22kg	Lamp: 65 x 23 x 25cm Panel: 59 x73 x 9 cm	20GP: 385sets 40GP: 830 sets 40HQ: 1040sets
FP-04A	24.3kg	Lamp: 65 x 23 x 25 cm Panel: 74 x 68 x 9 cm	20GP: 385sets 40GP: 830 sets 40HQ: 1040sets
FP-06A	26.4kg	Lamp: 65 x 23 x 25 cm Panel: 78 x 75 x10 cm	20GP: 357sets 40GP: 770 sets 40HQ: 1133sets

90° Adjustable Bracket

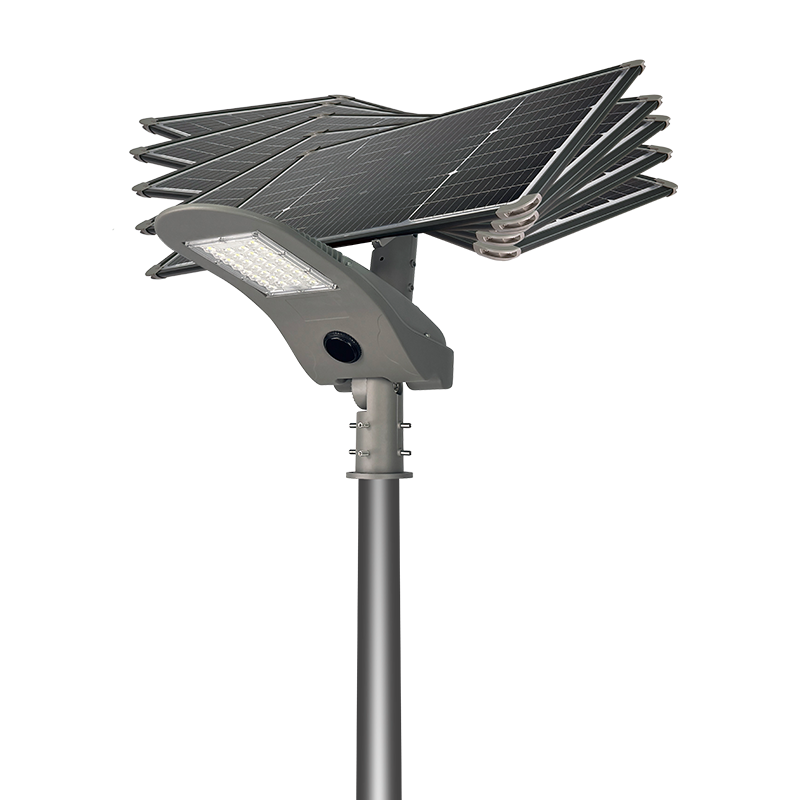

360° Adjustable Solar Panel

All In One Solar Street Light Installation

As far as you know, all in one solar street light is easy to do the installation and maintenance. Because it doesn't connect the grid power and no need for digging, wiring etc, use the shortest time to finish installation!
