Swan Series

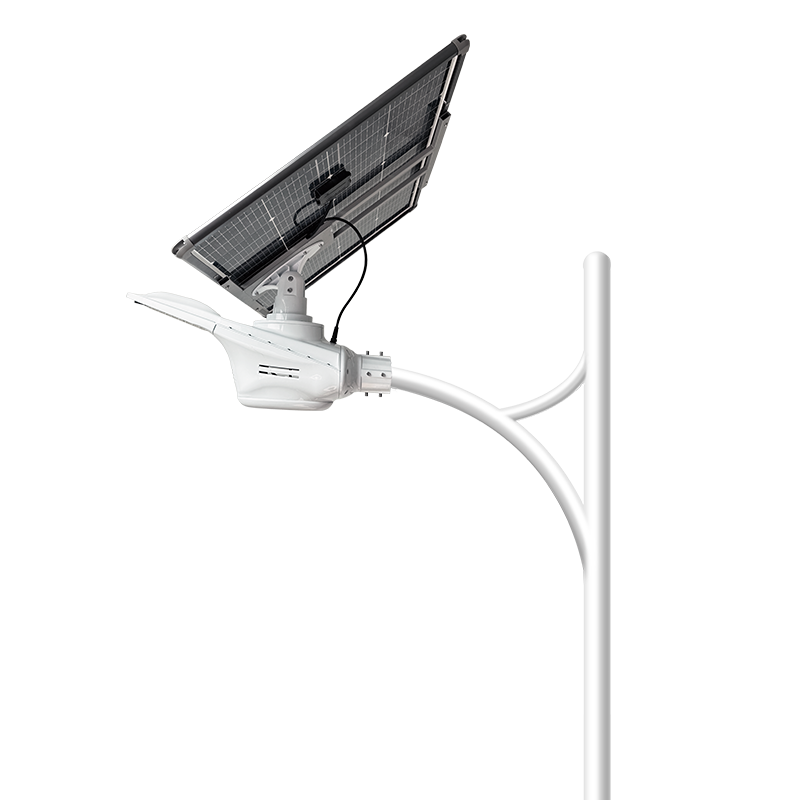

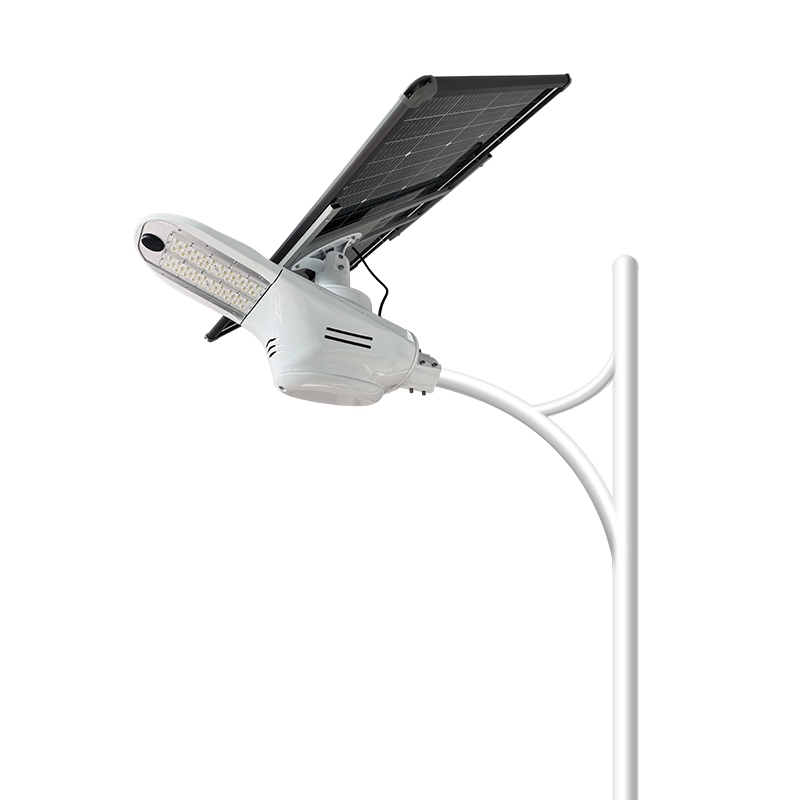

Solar Street Light With Adjustable Solar Panel

Solar Street Light With Adjustable Solar Panel

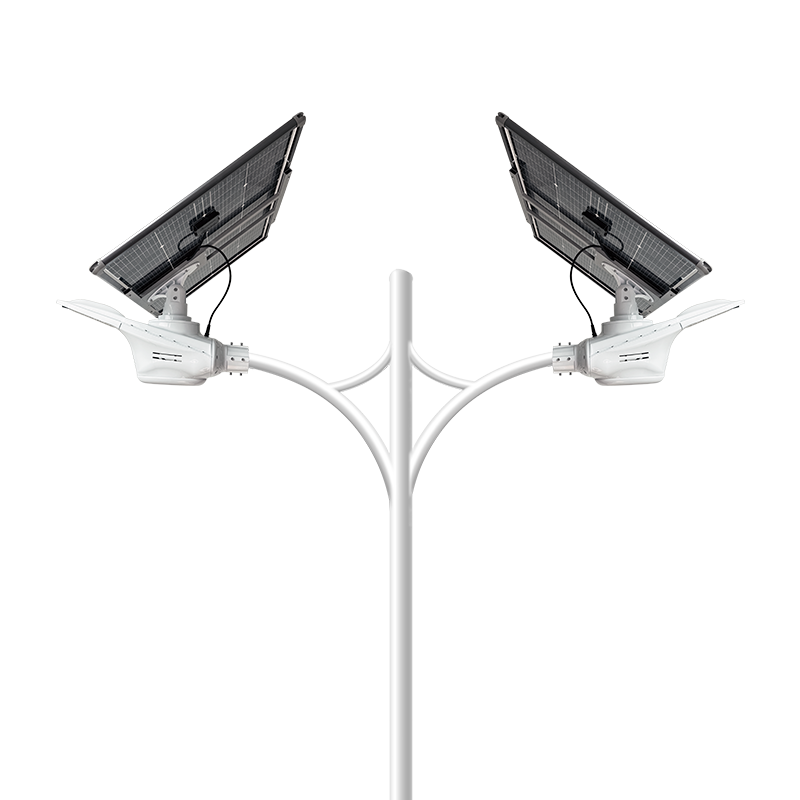

Solar Swan light especially created for horizontal installation on single arm or double arm street poles.

'SWAN' shape light body, 'All In One' Modern and elegent appearance

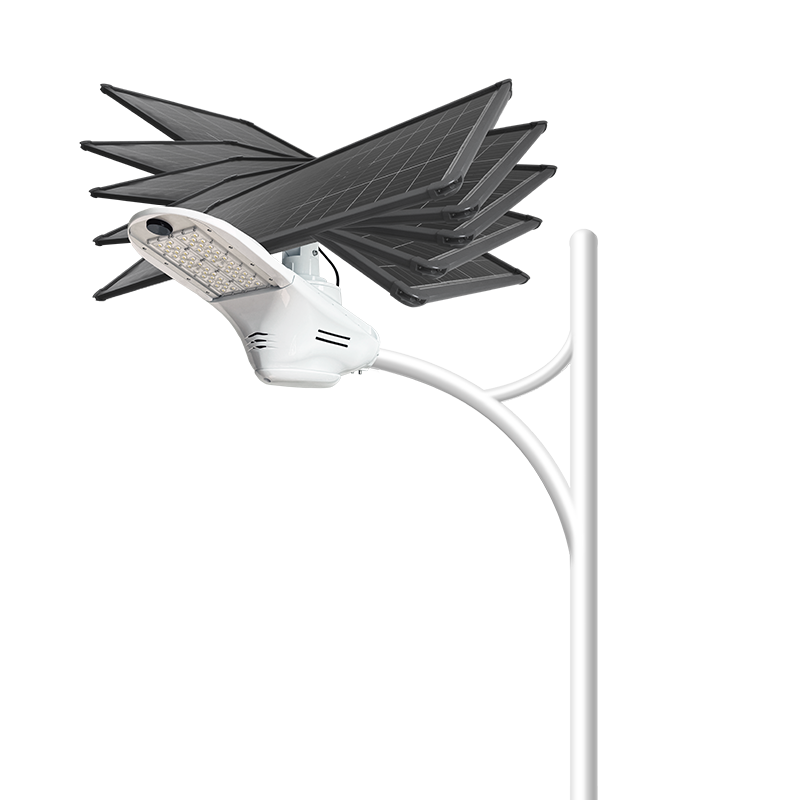

Innovative adjustable solar panel design (5 angle)
All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts
Support Photovoltaic Power Generation and Utility Power Grid

Cate for Highway roads, City urban, Public lighting area, Square & Landscape& School, Tourist center.

REQUEST FREE QUOTE

Datasheet

Packaging Details

Model	Led light (Bridgelux)	Mono Solar panel	LiFePO4 Battery	Mounting height	Mounting Distance	Solar panel size
BS-SW-50	50W 8000-9000LM	100W/18V	30AH 12.8V	5-6M	20-25M	77567535mm
BS-SW-60	60W 9600-10800lm	120W/18V	42AH 12.8V	6-7M	25-28M	90067535mm
BS-SW-80	80W 12800-14400lm	160W/36V	24AH/25.6V	7-8M	30M	1215x675x35mm
BS-SW-100	100W 16000-18000lm	200W/36V	30AH/25.6V	8-9M	35M	1505x675x35mm
BS-SW-120	120W 19200-21600lm	250W 36V	36AH 25.6V	9-10M	40M	1505x805x35mm
BS-SW-150	150W 24000-27000lm	300W 36V	42AH 25.6V	10-11M	45M	1215x675x35mm x 2pcs
BS-SW-180	180W 28800-32400lm	400W 36V	54AH 25.6V	11-12M	50M	1505x675x35mm x 2pcs

Model	G.W.	Carton Size		Container
BS-SW-50	28.5kg/set	lamp 760420340mm	solar panel: 825x725x105mm(2pcs/ctn)	184sets/20GP 415sets/40GP 492set/40HQ
BS-SW-60	32kg/set		solar panel: 950x725x105mm(2pcs/ctn)	178sets/20GP 400sets/40GP 474sets/40HQ
BS-SW-80	35kg/set		solar panel: 1265x725x105mm(2pcs/ctn)	160sets/20GP 360sets/40GP 427sets/40HQ
BS-SW-100	38kg/set		solar panel: 1555x725x105mm(2pcs/ctn)	150sets/20GP 338sets/40GP 400sets/40HQ
BS-SW-120	43kg/set		solar panel: 1555x855x105mm(2pcs/ctn)	140sets/20GP 318sets/40GP 376sets/40HQ
BS-SW-150	45kg/set	lamp 865310325mm	solar panel: 1265x725x105mm (2pcs/ctn)	127sets/20GP 285sets/40GP 337sets/40HQ
BS-SW-180	48kg/set	lamp 865310325mm	solar panel: 1555x855x105mm (2pcs/ctn)	105sets/20GP 235sets/40GP 279sets/40HQ

3 Mins Installation

As far as you know, all in one solar street light is easy to do the installation and maintenance. Because it doesn't connect the grid power and no need for digging, wiring etc, use the shortest time to finish installation!
